AGORA GARDEN, A SUSTAINABLE RESIDENTIAL TOWER


AGORA GARDEN, A SUSTAINABLE RESIDENTIAL TOWER




In November 2010, VINCENT CALLEBAUT ARCHITECTURES SARL
was awarded as the successful tenderer for the construction of a new
Luxurious Residential Tower located at Taipei. The Project is currently
under construction and will be completed in 2016.

You will find below the CONCEPTUAL DESIGN PROPOSAL
presented during the competition phase in 2010
by Vincent Callebaut, Design Architect:


1. THE ECOLOGIC PHILOSOPHY OF THE PROJECT :

In the heart of the urban networks of Xinyin District in full development,
 the AGORA GARDEN project presents a pioneer concept of sustainable
residential eco-construction that aims at limiting the ecologic footprint
 of its inhabitants by researching the right symbiosis between
the human being and the Nature.

On this site that is the last and only biggest parcel of land for residential use,
the concept is to build a true fragment of vertical landscape
with low energetic consumption. The building is thus eco-designed.
It integrates not only the recycling of organic waste and used water
but also all the renewable energies and other new state-of-the-art
nanotechnologies (BIPV solar photovoltaic, rain water recycling,
 compost, etc.). The project targets thus the energetic performance so
 as to be officially approved by the Green Building Label,
the norm for high environmental quality,
delivered by the Home Affairs Ministry of Taipei.

Part of the concept of inhabited and cultivated vertical farm
through its own inhabitants, this project of residential tower
enables first to design by its avant-gardist architecture a new
 life style in accordance with the nature and the climate.
Actually, the AGORA GARDEN tower superimposes vertically
 wide planted balconies of true suspended orchards,
organic vegetable gardens, aromatic gardens and other medicinal gardens.

Such as a living organism, the tower becomes metabolic!
 It overpasses its energy-consuming passive role
(absorbing all the natural resources and rejecting only waste)
 to produce its own organic food. The architectural concept is
thus to eco-design an energy self-sufficient building,
 whose energy is electric, thermal and also alimentary.

Therefore, the project answers directly to 4 main ecologic
objectives of the After Copenhagen:

1. The reduction of the climatic global warming.
2. The protection of the nature and the biodiversity.
3. The protection of the environment and the quality of life.
4. The management of the natural resources and waste.

Finally, according to the Cradle to Cradle concept where
nothing is lost, everything transforms itself; all the construction
and furnishing materials will be selected through recycled and /
or recyclable labels. By imitating the processes of natural ecosystems,
it deals thus with reinventing in Taiwan the industrial and architectural
processes in order to produce clean solutions and to create industrial
 cycle where everything is reused, either back to the ground as non-toxic
organic nutrients, or back to the industry as technical
nutrients able to be indefinitely recycled.
Biotechnological prototype, the AGORA GARDEN
project reveals thus the symbiosis of human actions
and their positive impact on the nature.


2. THE MORPHOLOGIC PHILOSOPHY OF THE PROJECT:

Neither single tower, nor twin towers, the project arises
 towards the sky with two helicoidal towers gathering
 themselves around a central core. This architectural
party offers a hyper-compacted core and a maximal flexibility
of the housing storeys (with the possibility to unify two apartments
 units in one without any footbridge).
It brings a reduction of view angles towards the urban
 landscape and a hyper-abundance of suspended gardens.

The AGORA GARDEN tower is, as its name indicates it,
directly inspired of the structure in double helix of the DNA
 (Deoxyribonucleic acid), source of life, dynamism and twinning.
 Every double helix is represented in the project by two
 housing units forming a full level.

Thus, from its base to the top, the 20 inhabited levels in double
 helix stretch themselves and twist themselves at 90 degrees.
By metaphor, the obtained sinuosity corresponds to the universal
musical symbol of harmonic revealing the notion of ultimate
 balance praised by the project.

• This twist of 90 degrees answers to four major objectives:

1. The first objective is to be perfectly integrated in the North /
South pyramidal profile of the Building Volume. Actually, the morphology
of the project changes according to its orientation. Its East /
West elevations draw a rhomboidal pyramid whereas the
 North-South ones represent a reverse pyramid.

2. The second objective is to generate a maximum of cascades
of suspended open-air gardens, not part of the F.A.R. (floor area ratio).
 Thus, the planted balcony surface area can easily exceed
the limit of the required 10 percents. The global framework of 40 percents
of building coverage ratio, i.e. 3 264 M2 is thus totally respected.

3. The third objective is to offer to the inhabitants exceptional
panoramic views on the skyline of Taipei
by multiplying the transversal views,
especially towards the very close Taipei 101 tower and
the Central Business District in full emergence.

4. The fourth objective is to generate from a flexible
standardized level a progressive geometry with corbels
which assures the intimacy and the confidentiality of each
apartment by avoiding the indiscreet vision axes.

Inspired from the Nature, the AGORA GARDEN p
roject is shaped with an organic fluid and dynamic geometry.
From the simple and standardized element of the double
helix of housing superimposed vertically and put
in successive rotation of 4.5 degrees level by level,
a multi-facial morphology appears all in convex and concave curves.

Actually, according to the point of view of the pedestrian
 from the surrounding streets, the AGORA GARDEN tower
changes of faces and proposes new profiles.
Besides this moving geometry wearing a planted dress
 with sensual style, the project represents really a built ecosystem
 that repatriates the fauna and the flora in the heart of
the city and generates alone a new box of subtropical
biodiversity. It is a new nest in the city!



3. THE MAIN COMPONENTS OF THE PROJECT:

3.1. The luxuriant forest and the glade:

In order to ensure the confidentiality of the residents, the whole perimeter
of the site is bordered by a mineral moat that animates the outside public
space with organic urban furnitures. Inside the parcel, the walls of this moat
transform themselves into planted surrounding walls.

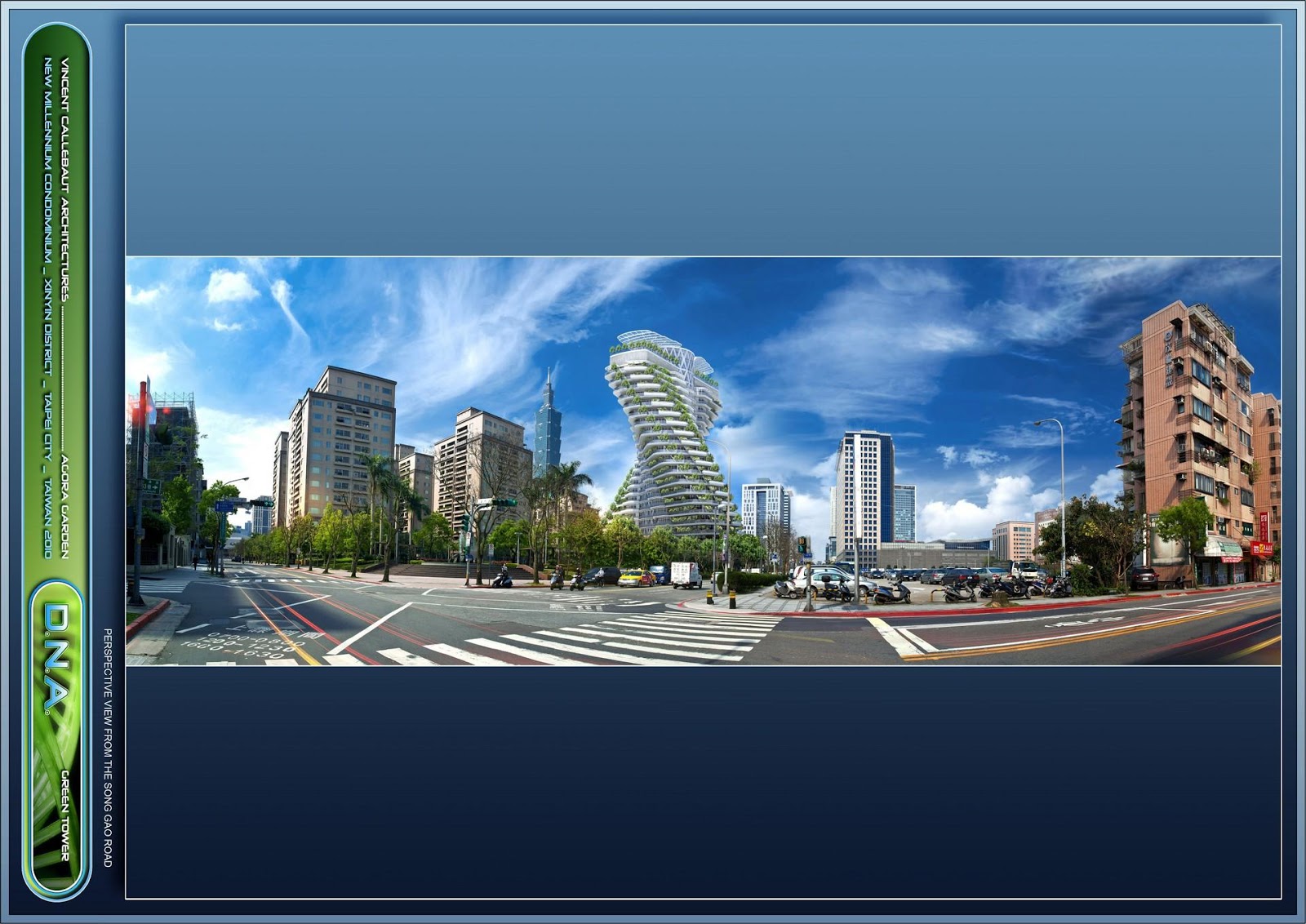

The main access of the site is located at the Song Yong Road
 which is less busy that the main avenue, Song Gao Road.
The tower is coiled up in the centre of a heavy and luxuriant
safe forest of mature trees that protects the intimacy of the inhabitants
 from the surrounding urban pollution. In the heart of the vegetable lung,
 the pedestrian square of exotic wood opens itself on a mineral and aquatic glade.

Such as the shock wave created by a water drop, the landscape design
 is made in circles arches and radiates from the epicentre of the tower.
A circular light well, curved this time, makes the light,
the abundant plants in cascades to the deepest basement.
The car parks, the swimming pool and the fitness
are thus naturally lightened and ventilated.

3.2. The lobbies in indoor - outdoor connectivity:

The ground floor in double height sets through its great transparent
 facades a high connectivity between the interior community
 spaces and the exterior garden.

3.3. The central core, a vertical twisted garden surrounded
by sky entry foyers:

The central core has been designed to separate totally
the vertical circulations into two housing units on the same level.
 This core is fixed (it does not pivot). But in order to ensure the rotation
 of the storeys floor by floor, it is surrounded by a (naturally lightened)
horizontal circulation loop welcoming the entry foyer dedicated to each unit.
This buffer loop enables thus to set the main entrance always
in the axis of each apartment and this despite of the 4.5 degrees rotation
 storey by storey. An alternative has been studied to build sky
 entry foyers directly around the cylindrical central core offering
thus planted entry foyers with spectacular front view on the city of Taipei.

By level, the central core gathers 2 staircases, 4 high speed elevators
of 24 people (1800 kg), 1 car elevators (also useful to carry enormous art pieces,
luxury antique vehicles, or even huge pianos, etc.), 2 sky garages in glass and
also all the vertical shafts for the main flows. All these vertical
flows are covered by a huge bearing exoskeleton in reinforced steel.

3.4. The apartments, a maximal spatial and technical flexibility:

The apartments of 540 M2 on average superimpose themselves
under the shape of two planted twists unified around a central core.
Each unit presents a storey structurally made with Vierendeel beams system
 behind glass facades only on even floors. All levels are linked at both
 ends by two spiralling mega columns covered by green walls.
Each apartment is completely free columns!

This structural concept inspired of the DNA chain enables a maximal
flexibility in terms of interior layout. It ensures also an optimal visual permeability
 (indoor outdoor connectivity) towards the suspended gardens of the balconies
 in foreground and the urban panorama on the background.

• The spatial flexibility is divided in 4 main typologies of storeys of 2 or 4 units:

Typology A : 2 units with curved living rooms around a central core.
Typology B : 2 units with living rooms stretched in the length behind the Southern façades.
Typology C : 2 units with living rooms set in bow by the panoramic storey.
Typology D : 4 units in duplex with living rooms benefiting from a double height.

In addition to these basic typologies, two huge clubhouses are set
up on the roof floors so as to respect the setback required by
the building volume. Therefore, from the same standardized
double helix (1.250 M2 floor area), the rotation of the storey
 and its customizable interior laying-out makes every level
be a unique floor for each resident!

• The technical flexibility is obtained by the integration of the double
 deck and double wall concepts:

Spatially hyper-flexible, the constructive system proposed also a total
 flexibility to the level of technical distribution of the flows. Additional
vertical flows are organized with “oblique shafts” along the glass façade.
 The system of double deck is integrated at each level under the shape
of a double floor and a suspended ceiling. The network of the flows
(rain water, used water, hot water, electricity, under floor-heating,
cool air, hot air, optic fibre, etc.) crossing the central core can thus
irrigate without any difficulty on the horizontal way all the surface area
 of each storey. Moreover, the use of castellated beams will enable to take
advantage of a maximal free height under ceiling. The interior partitioning
of each apartment will be à la carte according to the wishes of each inhabitant.
 The double walls will compartmentalize the different rooms following
 the curved axes of the building by integrating also many useful storage spaces.

• The energetic efficiency is obtained by isolating façades with high
performance named inter-layer or double-layer:

The AGORA GARDEN tower is covered by linear crystalline façades
 repeating themselves at each level. The identical facades in every
apartment will be pre-manufactured in factory to accelerate their
setting-up during the works. A multilayer glass (airspace + Polyvinyl Butyral)
or double layer façades with integrated blinds will be directly
associated there in order to protect the interior spaces from the
solar radiation in summer and to limit the calorific loss in winter.

3.5. The landscape balconies, green cascades of flowers, fruits,
 vegetables and aromates:

The landscape concept is to build a cascade of suspended gardens
which cover the entire building. The tower becomes then a true vertical
Inhabited park, in a box of nature in the heart of the city !
The selected essences will be preferably eatable in order to make each
 inhabitant gardener in its own vegetable consumption. Suspended orchards,
 organic vegetable gardens, aromatic and medicinal gardens will flourish
 the wide and deep jardinière along the global periphery of each apartment.
Garden furniture, compost spaces from waste to organic fertilizers, fuel cells,
rain water tanks for the irrigation of plants, and ecologic nests for birds will be
 directly integrated in the design of these jardinières. In order to protect
 the organic substrate tanks from the heating coming from the solar radiation,
the planting beds will be covered by a layer of Bethel white granite on honeycomb.
The white colour of the AGORA GARDEN tower will provide a new emblematic,
pure and fresh identity.

The tower generates through its morphology in rotation two types of
very specific landscape balconies :

• The balconies called ascending or positive: open-air, they benefit from
a maximal sunshine and enable to cultivate their trees and shrubs of
subtropical essences. We will preferably set up the living rooms on this side.
It will be also possible to inlay photovoltaic sunshades at the extremity of the
 slab according to the wishes of each resident. Thermal captors could be also
 set up in order to produce sanitary hot water.

• The balconies called descending or negative: Covered by the superior level,
they offer half shadowed relaxing spaces to cultivate flowers, vegetables,
aromatic plants and falling and climbing species. We will preferably
set up the bedrooms on this side.

In bow of the housing storeys, are laid-out some outdoor garden bath sanctuary
that coils themselves up in an alcove dig in the façade of each apartment.
Different from the modern city built of concrete, glass and steel,
the AGORA GARDEN tower appears in an urban centre as a green twisted mountain.
Following the seasons, the planted essences (with persistent and deciduous leaves)
will make its colours and its abundance to evolve.
Declining a camaieu of green in the summer, the tower will blaze
 with golden and bloody colours in autumn. In spring, it will be bloomed
with thousands colours and will liberate floral fragrances from its fruit trees.
The tower will then develop perfumed micro-climate for the very
best welfare of its inhabitants!

3.6. The photovoltaic roof and its gardens for phyto-purification:

Located at 100 meters high, a huge photovoltaic pergola of 1000 m²
transforms the sun rays into electric energy which is directly reintroduced
 into the network of the building. Under this layer with blue-steel reflection,
 clubhouses are located on the roof surrounded by panoramic sky gardens.
They filter and purify the rain water with the action of the plants in order to
 reinject the water by gravity in the distribution network of sanitary water.
From this terrace, there is an extraordinary panoramic view on the 101 tower.

3.7. The landscape basement naturally lightened and ventilated:

Contrary to the traditional car park of 2.10 M high under beams and plunged
 under an artificial shadowy light, the car park of the AGORA GARDEN
 project benefits from the natural light. Actually, A light well integrating seismic
joints makes the light and the fresh air fall to the levels of the basement.
Thus, the car park and the connected facilities (swimming pools and fitness)
are naturally ventilated. The main access of the basement is done
by the Song Yong Road under a sculptural entry gate inspired by a spiralling leaf.

From the level B1, we can access to both car elevators inside the central
 core and go very quickly to the sky garages located at the entrance of
each apartment. The car park is designed in the existing perimeter of the
 current car park of the pre-existing Agora Garden hotel in order to limit the
works cost of excavation and foundations.

Only the South-West wall has been corrected so as to set up a laying-
out with double helix. Actually, in the continuation of the rotating tower,
the car park is drawn according to a circular plan with an ascending interior
helix around the core in the direction of the exit and a second descending helix
 in the direction of the entrance. The whole set forms a continuous banister
that welcomes more than 230 cars and 500 scooters. From slab to slab,
the minimal height is 3,10 meters which improves comfortably the atmosphere
 of the building of an immaculate white. It is important to notice that
 the structure of the tower weights through this car park in order to facilitate
 the descent of the loading of the whole building.


4. THE CHALLENGE OF A POSITIVELY ECOLOGIC REVOLUTION!

In the architecture of the AGORA GARDEN project, the association
 of the living (Bios), the biotechnologies (renewable energies and
nanotechnologies), and the NICT (New Technologies of Information
and Communication), can meet the Chinese antique thought which
always refused to separate the nature and the humanity that nourishes
 itself from it; the body from the spirit that did not exist without it.
Avant-gardist on the theme of contemporary ecologic crisis, the Chinese
 thought prefers the relationships rather than the separated elements.
The human being and its life framework depend from the fusion of the variables:

As humbly wrote the influent sinologist, specialist in old China Marcel
Granet in the Chinese Thought in 1934: None opposes the human being
 from the nature; do not think of opposing them such as the free element
 from the determined element. The Chinese people only see in the Time
 and the Space a gathering of occasions and sites. These are interdependences,
solidarities that constitute the order of the Universe. We do not think
that the Man could form a reign in the Nature or that the spirit
distinguishes itself from the material.

In the heart of Taipei, after having built the city on the landscape,
after having then built the city on the city, it is now time for the landscape
 to rebuild itself on the city ! In this perspective of ecologic resilience,
the AGORA GARDEN project must be considered as an abstraction
of geography and a distortion of ecosystem. The AGORA GARDEN
project is a Nature built from the living that fights for the re-naturalisation
of Ecopolis of tomorrow! This tower reveals strongly and surely the challenge
 of reinventing a new lifestyle for residential tower, that is self-sufficient,
sculpturally unprecedented. It is a project absolutely unique in the world
and charismatic drawing with poetry in the Oriental sky, a delicate
superposition of sky villas with wide suspended private gardens.

Last but not least, it is a unique ecologic landmark, new symbol
of sustainability at the bottom of the prestigious 101 tower!


http://www.archello.com/en/project/agora-garden-sustainable-residential-tower

Sem comentários:

Enviar um comentário
